Key Features
- RF-Mount Lens/Full-Frame Format
- Fixed f/11 Aperture
- Retractable, Locking Lens Barrel
- Gapless Dual-Layer Diffractive Optics
- STM Stepping AF Motor
- Optical Image Stabilizer
- Customizable Control Ring
- Compatible with RF Extenders
Â

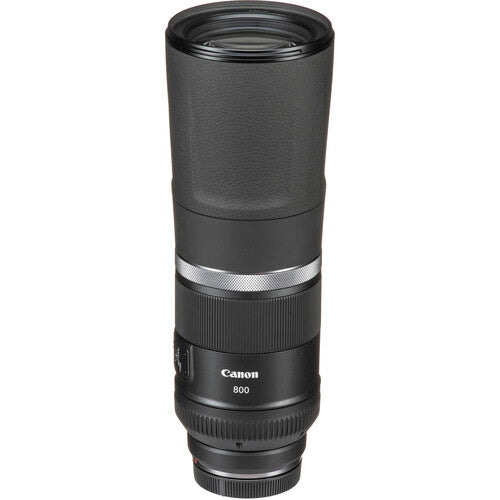

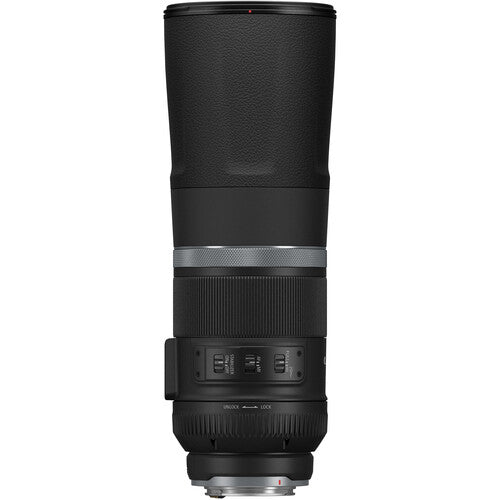

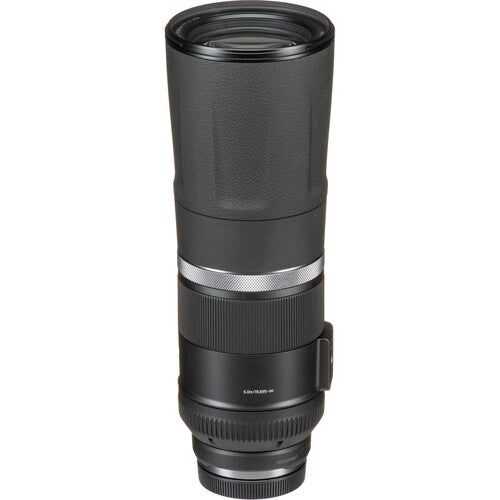

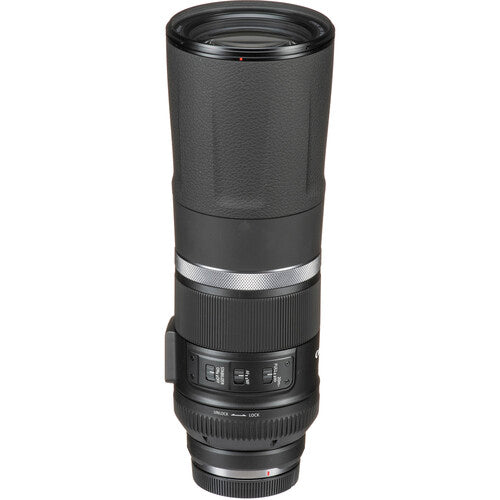

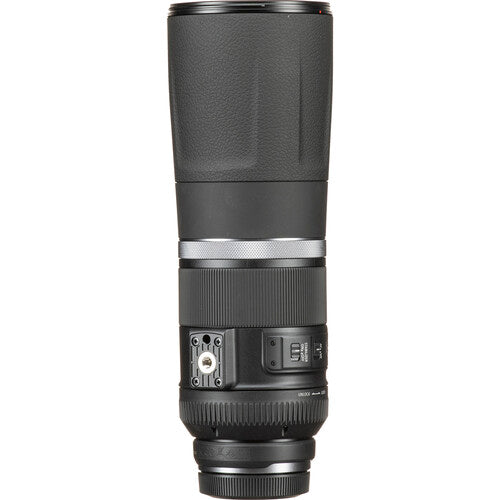

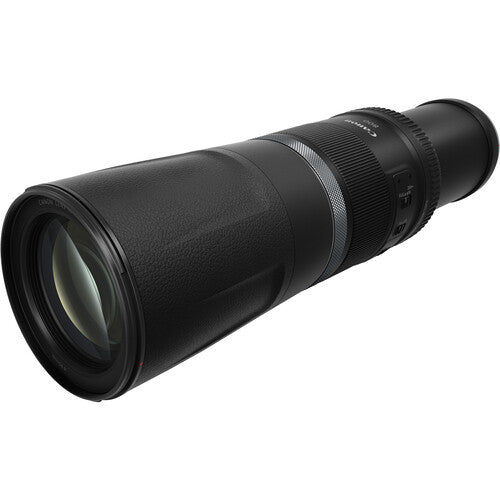

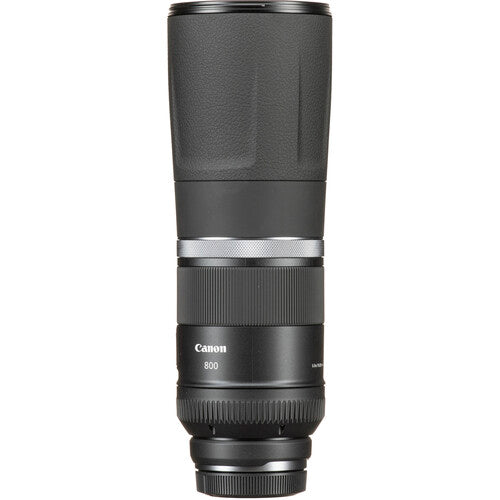

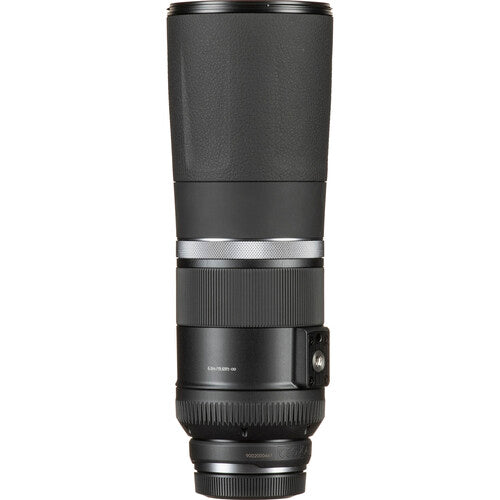

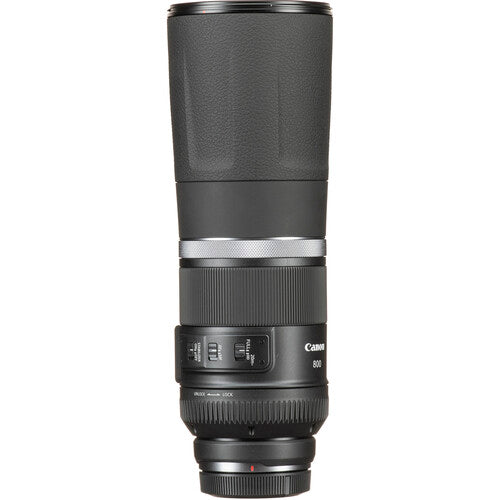

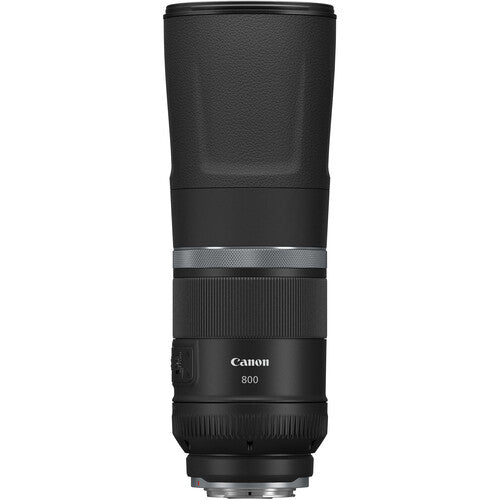

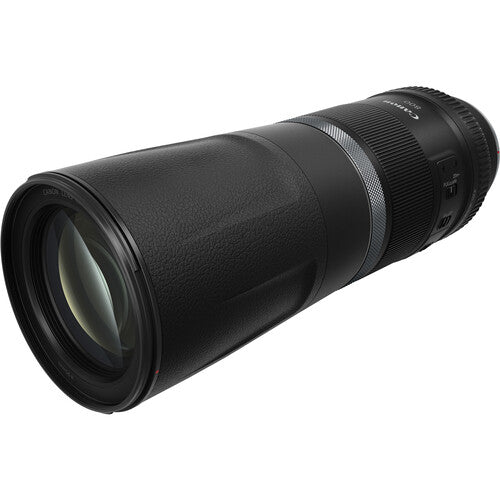

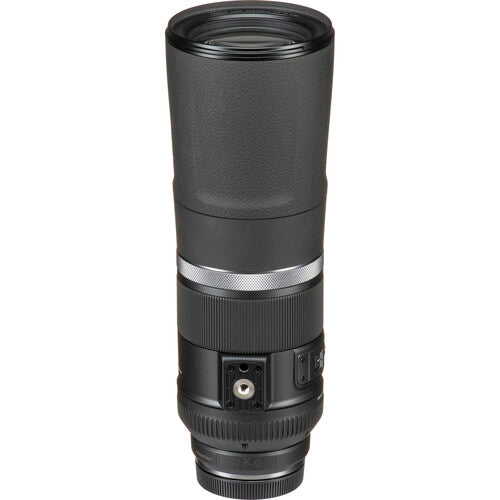

Super long reach, super compact design, the Canon RF 800mm f/11 IS STM is a unique telephoto prime featuring a distinct mixture of focal length and form factor. Characterized by its retractable design and a fixed f/11 aperture, this lens's sleek profile makes handheld super-tele shooting a very real possibility, and four stop-effective optical image stabilization further helps to achieve sharp imagery when working in difficult lighting conditions.
- Super-telephoto prime is designed for use with full-frame Canon RF-mount mirrorless digital cameras.
- Fixed f/11 aperture contributes to the sleek and portable form factor as well as a balanced mixture of depth of field and sharpness.
- Gapless dual-layer diffractive optics contribute to a marked reduction in chromatic and spherical aberrations as well as benefit the design of a relatively compact and lightweight lens.

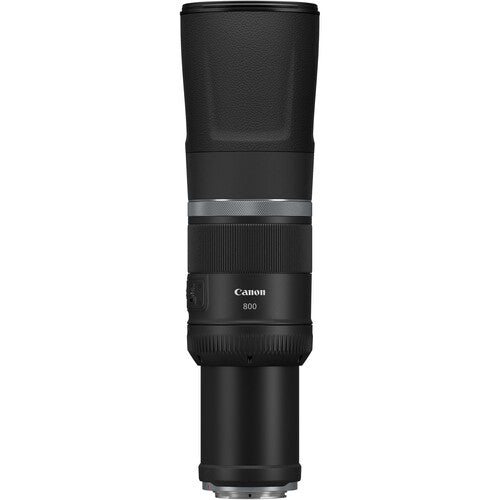

- Retractable/extendable design, with a locking lens barrel, offers an impressively compact form factor considering the super-telephoto design.
- An Optical Image Stabilizer helps to minimize the appearance of camera shake by up to four stops to better enable working in low-light conditions and with slower shutter speeds.
- STM stepping motor offers fast, quiet, smooth, and accurate autofocus performance that is ideal for video recording as well as still shooting.
- Configurable Control Ring can be used to adjust a variety of exposure settings, including aperture, ISO, and exposure compensation.
- Compatible with optional Extender RF 1.4x and Extender RF 2x teleconverters to further increase the effective focal length.
Â
Specifications
Canon RF 800mm F/11 IS STM
| Focal Length |
800mm
|
| Maximum Aperture |
f/11
|
| Lens Mount |
Canon RF
|
| Lens Format Coverage |
Full-Frame
|
| Focus Type |
Autofocus
|
| Image Stabilization |
Yes
|

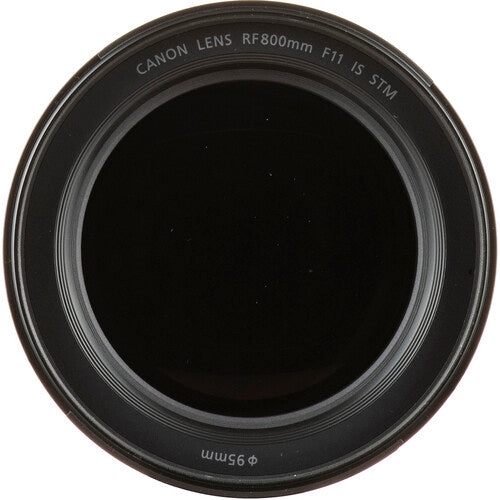

| Filter Size |
95 mm (Front)
|
| Maximum Aperture |
f/11
|
| Minimum Aperture |
f/11
|
| Lens Mount |
Canon RF
|
| Lens Format Coverage |
Full-Frame
|
| Angle of View |
3° 5'
|
| Minimum Focus Distance |
19.69' / 6Â m
|
| Maximum Magnification |
0.14x
|
| Optical Design |
11 Elements in 8 Groups
|
| Focus Type |
Autofocus
|
| Image Stabilization |
Yes
|
| Filter Size |
95 mm (Front)
|
| Dimensions (ø x L) |
4 x 11.1" / 101.6 x 281.8Â mm
|
| Length at Maximum Extension |
13.85" / 351.79Â mm
|
| Weight |
2.77Â lb / 1260Â g
|
Packaging Info
| Package Weight |
3.55 lb
|
| Box Dimensions (LxWxH) |
15 x 6.8 x 6.8"
|
