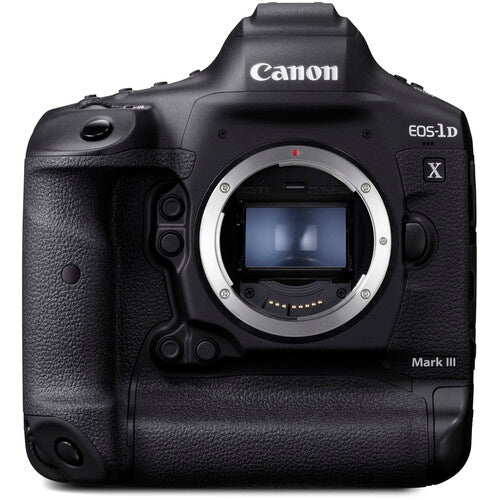

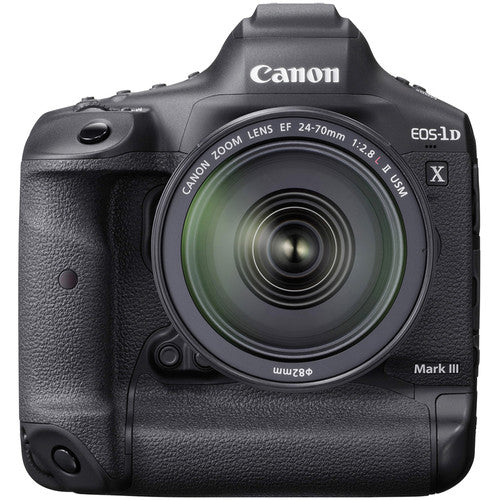

Canon EOS 1D X Mark III DSLR Camera Body

Key Features
- 20.1MP Full-Frame CMOS Sensor
- DIGIC X Image Processor
- EOS iTR AF X 191-Point AF System
- Dual Pixel CMOS AF, 525 Selectable Areas
- Up to 20 fps Shooting, ISO 100-102400
- 4K60 10-Bit 4:2:2 Internal Recording
- Canon Log and 5.5K Raw Video Support
- Wi-Fi, Bluetooth, and GPS
- Dual CFexpress Memory Card Slots
Built for speed, sensitivity, and precision, the Canon EOS-1D X Mark III is a powerful DSLR designed for sports, wildlife, and other trying and dynamic imaging applications. Designed as the flagship of the EOS system, the 1D X Mark III is characterized by its refined processing capabilities and distinct speed to suit both photo and video applications. Featuring a newly designed 20.1MP full-frame CMOS sensor and updated DIGIC X image processor, this camera is capable of continuous shooting rates up to 16 fps with the optical viewfinder or 20 fps in live view, with a 1000-shot buffer when shooting raw+JPEG.
In addition to high-performance stills shooting, the 1D X Mark III is also highly competent for video, with the ability to record DCI 4K content internally at up to 60 fps with 10-bit, 4:2:2 color, as well as Full HD at 120 fps and raw 5.5K (5472 x 2886) at 60 fps. Complementing recordings are Movie Digital IS, manual focus peaking, and Focus Guide, and, also, Canon Log Gamma can be used for greater color grading control in post.
20.1MP Full-Frame Sensor and DIGIC X Image Processor
EOS iTR AF X Autofocus and Dual Pixel CMOS AF
When recording video or shooting in live view, a Dual Pixel CMOS AF system is employed that features 3869 manually selectable autofocus points, with 525 automatic positions. This focusing system offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. Dual Pixel CMOS AF integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery.
DCI 4K and 5.5K Raw Video
Both All-I and IPB compression options are available, along with the ability to autofocus when shooting at up to 5.5K raw at 30 fps or cropped DCI 4K at 60 fps. When using the full-frame area, 4K autofocus is limited to 30 fps. Also, Movie Digital IS, peaking, and a focus guide can be used to further complement making stable and sharp recordings.

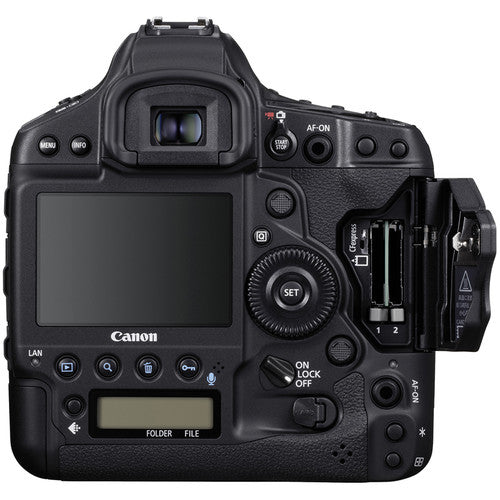

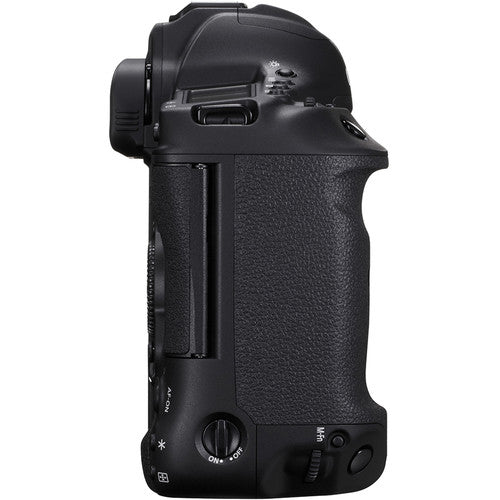

Body Design
- Enhanced optical pentaprism viewfinder works in conjunction with an updated mirror drive mechanism for reduced blackout.

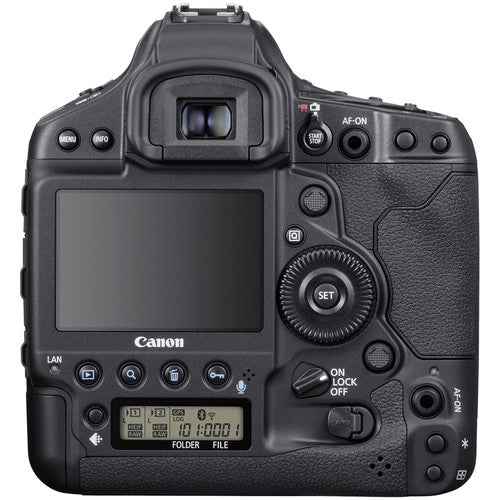

- Rear 3.2" 2.1m-dot LCD has a touchscreen design for intuitive control over playback and menu navigation.
- Dual CFexpress memory card slots cater to the fast-continuous shooting rates and high-resolution video recording and also offer a flexible means for storing and sorting file types.
- Smart Controller on the rear of the body is a touch-sensitive button for quick and intuitive focus point selection while shooting. LP-E19 rechargeable lithium-ion battery offers improved performance compared to previous generation 1D cameras.
- Built-in Wi-Fi, Bluetooth, and GPS offer flexible wireless control and geotagging capabilities, along with the ability to apply IPTC tags to files.

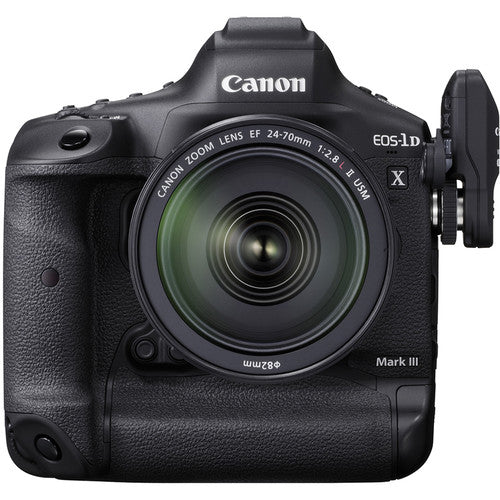

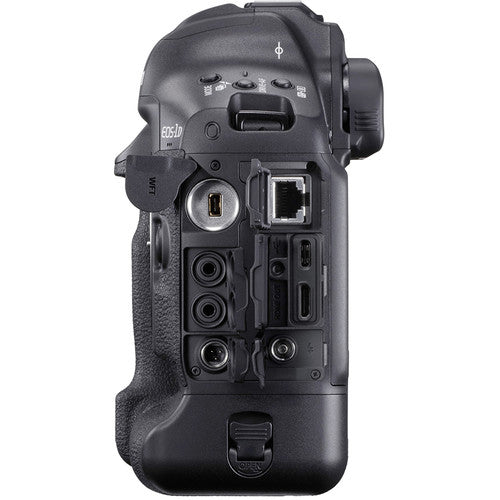

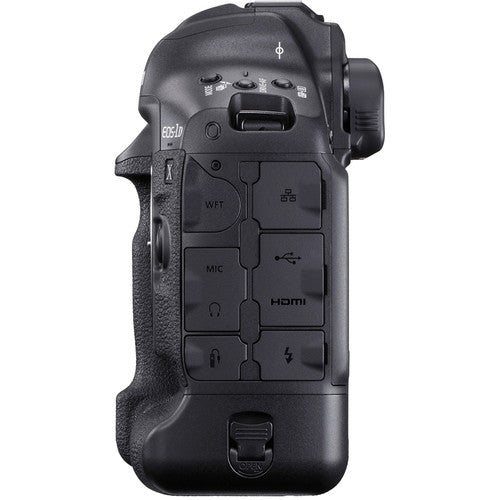

- For physical, wired connectivity, there are integrated USB Type-C, mini HDMI, headphones, microphone, N3 remote, and Ethernet ports. Compatible with optional WFT-E9A Wireless File Transmitter for faster file transferring over wireless LANs.
- Magnesium alloy body design is dust- and weather-resistant for working in inclement conditions.
Specifications
Canon 1D X Mark III Specs
Lens Mount | Canon EF |
Sensor Resolution | Actual: 21.4 Megapixel Effective: 20.1 Megapixel (5472 x 3648) |
Sensor Type | 36 x 24 mm (Full-Frame) CMOS |
Image Stabilization | Digital (Video Only) |
Mirror Lock-Up | Yes |
Capture Type | Stills & Video |
Shutter Type | Electronic Shutter, Mechanical Focal Plane Shutter |
Shutter Speed | Mechanical Shutter 1/8000 to 30 Seconds |
Bulb/Time Mode | Bulb Mode |
ISO Sensitivity | Photo 100 to 102,400 in Auto Mode (Extended: 50 to 819,200) Video 100 to 102,400 in Manual, Auto Mode (Extended: 50 to 819,200) |
Metering Method | Center-Weighted Average, Evaluative, Partial, Spot |
Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority |
Exposure Compensation | -5 to +5 EV (1/3, 1/2 EV Steps) |
Metering Range | 0 to 20 EV |
White Balance | Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
Continuous Shooting | Up to 20 fps at 20.1 MP for up to 1000 Frames (Raw) Up to 16 fps at 20.1 MP for up to 1000 Frames (Raw) |
Interval Recording | Yes |
Self-Timer | 2/10-Second Delay |
Image Sizes | 3:2 Raw 5472 x 3648 3:2 JPEG 5472 x 3648 3648 x 2432 2736 x 1824 |
Aspect Ratio | 3:2 |
Image File Format | HEIF, JPEG, Raw |
Bit Depth | 14-Bit |
Raw Recording | Raw 12-Bit 5472 x 2886 at 23.98/24.00/25/29.97/50/59.94 fps [1800 to 2600 Mb/s] |
Recording Modes | H.265/MP4 4:2:2 10-Bit DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p [170 to 1000 Mb/s] UHD 4K (3840 x 2160) at 25p/29.97p/50p/59.94p [170 to 1000 Mb/s] Full HD (1920 x 1080) at 25p/29.97p/50p/59.94p/100p/119.88p [18 to 470 Mb/s] H.264/MP4 4:2:0 8-Bit DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p [120 to 940 Mb/s] UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p [120 to 940 Mb/s] Full HD (1920 x 1080) at 25p/29.97p/50p/59.94p/100p/119.88p [12 to 360 Mb/s] |
Recording Limit | Up to 29 Minutes, 59 Seconds |
Video System | NTSC/PAL |
Built-In Microphone Type | Stereo |
Audio Recording | AAC Audio LPCM Audio |
External Recording Modes | 4:2:2 10-Bit via HDMI DCI 4K (4096 x 2160) up to 59.94p |
IP Streaming | None |
Media/Memory Card Slot | Dual Slot: CFexpress Type B (CFexpress 1.0) |
Video I/O | 1 x Mini-HDMI Output |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input |
Other I/O | 1 x USB Type-C (USB 3.2 / 3.1 Gen 1) Data Output 1 x Canon N3 Control Input 1 x PC Sync Socket Input 1 x RJ45 Output |
Power I/O | None |
Wireless | Wi-Fi, Bluetooth |
Global Positioning (GPS, GLONASS, etc.) | GPS, GLONASS, Galileo, QZSS |
Size | 3.2" |
Resolution | 2,100,000 Dot |
Display Type | Fixed Touchscreen LCD |

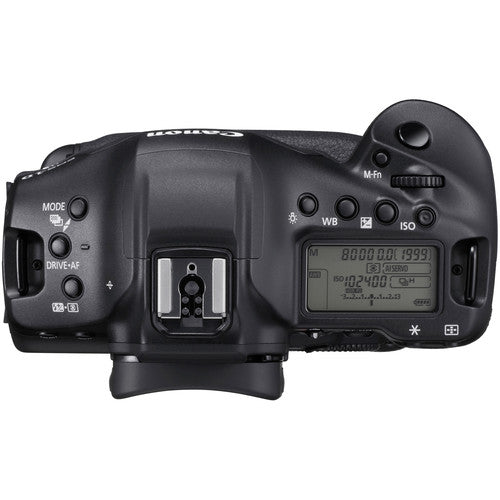

Secondary Display | Top: Status Display |
Type | Optical (Pentaprism) |
Eye Point | 20 mm |
Coverage | 100% |
Magnification | Approx. 0.76x |
Diopter Adjustment | -3 to +1 |
Focus Type | Auto and Manual Focus |
Focus Mode | Continuous-Servo AF, Manual Focus, Single-Servo AF |
Autofocus Points | Phase Detection: 191 (155 Cross-Type) |
Autofocus Sensitivity | -4 to +18 EV |
Built-In Flash | No |
Maximum Sync Speed | 1/250 Second |
Flash Compensation | -3 to +3 EV (1/3 EV Steps) |
Dedicated Flash System | eTTL |
External Flash Connection | Hot Shoe, PC Terminal |
Battery Type | 1 x LP-E19 Rechargeable Lithium-Ion, 11.1 VDC, 2750 mAh (Approx. 2850 Shots) |
Accessory Mount | 1 x Hot Shoe Mount |
Material of Construction | Magnesium Alloy |
Dimensions (W x H x D) | 6.22 x 6.6 x 3.25" / 158 x 167.6 x 82.6 mm |
Weight | 1250 g (Body Only) 1440 g (With Battery, Recording Media) |
Package Weight | 2.64 kg |
Box Dimensions (LxWxH) | 9.4 x 7.9 x 7.6" |
