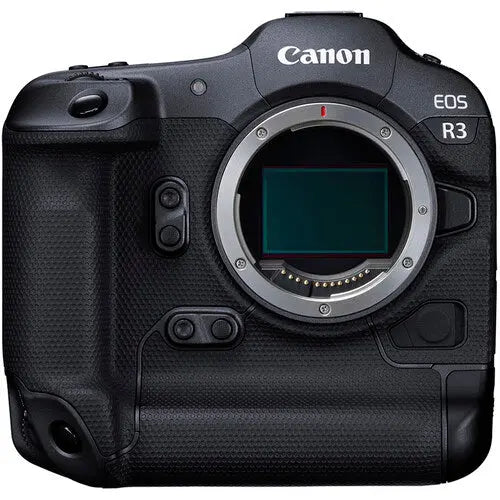

A first for EOS cameras, the R3 features a stacked sensor design that promotes impressively fast read-out speeds to greatly reduce rolling shutter distortion and enable faster shooting performance. This 24.1MP full-frame CMOS chip also has a back-illuminated design that is more efficient at gathering light, which leads to reduced noise, higher clarity, and smoother color rendering, particularly when working in low-light conditions.
Electronic Shutter
A main benefit of the stacked sensor design is an electronic shutter function that can shoot continuously up to 30 fps, for up to 150 raw frames, with virtually no rolling shutter distortion. When working in manual or shutter-priority modes, the top shutter speed is 1/64,000 sec and flash sync is possible with an electronic shutter, up to 1/180 sec. This versatile shutter function is inherently silent but can be paired with a choice of audible shutter noises to go along with each shutter click to make it easier for subjects to recognize when a photo has been taken.
A manual shutter is also available, and offers a top continuous shooting speed of 12 fps, with a buffer of more than 1000 frames, along with a top flash sync speed of 1/250 sec.
Specifications

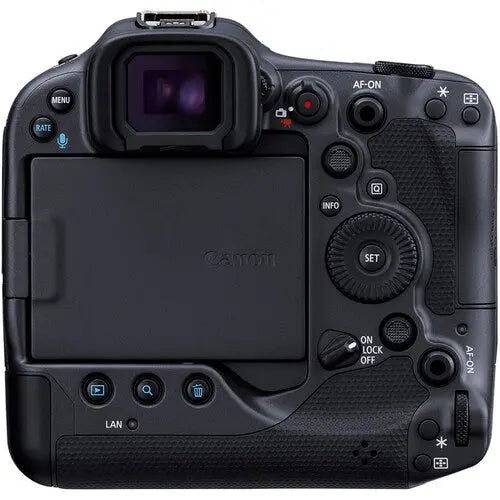

Canon EOS R3
Lens Mount
Canon RF
Sensor Resolution
Actual: 26.7 Megapixel Effective: 24.1 Megapixel
Image Sensor
36 x 24 mm (Full-Frame) CMOS
Image Stabilization
Sensor-Shift, 5-Axis
ISO Sensitivity Range
Photo/Video 100 to 102,400 (Extended: 50 to 204,800)
Continuous Shooting
Electronic Shutter Up to 30 fps at 24.1 MP for up to 150 Frames (Raw) / 540 Frames (JPEG) Mechanical Shutter Up to 12 fps at 24.1 MP for up to 1000 Frames (Raw) / 1000 Frames (JPEG)
Internal Recording Modes
Raw 12-Bit 6000 x 3164 at 23.98/24.00/25/29.97/50/59.94 fps [720 to 2600 Mb/s] H.264/MP4 4:2:0 8-Bit DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100 fps UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps 1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps H.265/MP4 4:2:2 10-Bit DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100 fps [85 to 1880 Mb/s] UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [85 to 1880 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps [28 to 470 Mb/s]
External Recording Modes
4:2:2 10-Bit via HDMI DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps

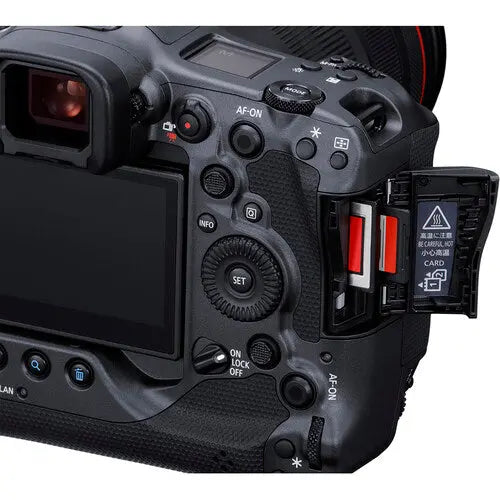

Media/Memory Card Slot
Slot 1: CFexpress Type B Slot 2: SD/SDHC/SDXC (UHS-II)
Video I/O
1x Micro-HDMI (Unspecified Signal) Output

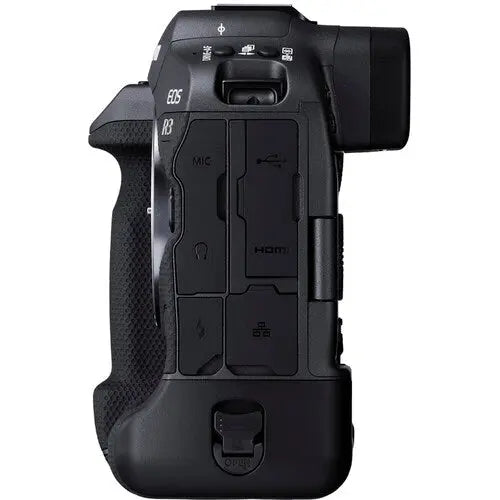

Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body 1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body
Power I/O
1x USB-C Input
Other I/O
1x RJ45 1x Canon N3 Control 1x USB-C Data Output (Shared with Power Input)
Wireless
2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0 Control

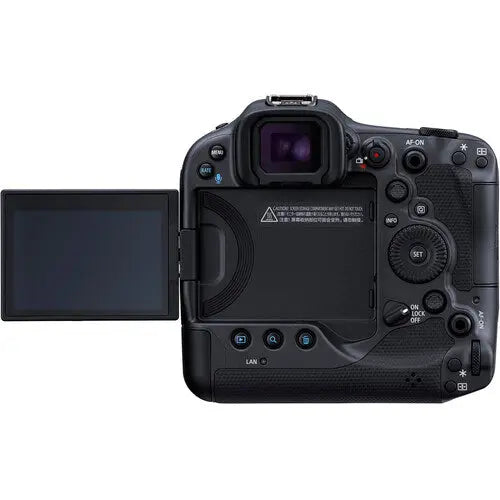

Display Type
Articulating Touchscreen LCD

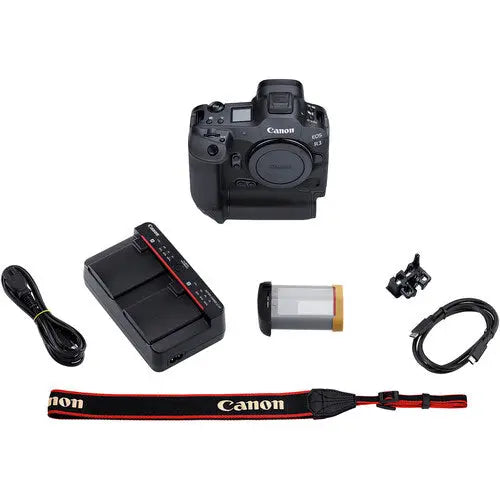

Battery Type
1x LP-E19 Rechargeable Lithium-Ion, 10.8 VDC, 2700 mAh or 1x LP-E4N Rechargeable Lithium-Ion, 11.1 VDC, 2450 mAh
Imaging
Lens Mount
Canon RF
Sensor Resolution
Actual: 26.7 Megapixel Effective: 24.1 Megapixel
Image Sensor
36 x 24 mm (Full-Frame) CMOS
Sensor Crop (35mm Equivalent)
Crop Factor: 1xÂ
Image Stabilization
Sensor-Shift, 5-Axis
Built-In ND Filter
No
Capture Type
Stills & Video
Exposure Control
Shutter Type
Mechanical Focal Plane Shutter and Electronic Rolling ShutterÂ
Shutter Speed
Mechanical Shutter 1/8000 to 30 Seconds Electronic Shutter 1/64000 to 30 Seconds in Manual Mode 1/64000 to 30 Seconds in Shutter Priority Mode 1/8000 to 30 Seconds in Aperture Priority Mode 1/8000 to 30 Seconds in Program Mode
Bulb/Time Mode
Bulb Mode
ISO Sensitivity Range
Photo/Video 100 to 102,400 (Extended: 50 to 204,800)
Electronic Shutter Up to 30 fps at 24.1 MP for up to 150 Frames (Raw) / 540 Frames (JPEG) Mechanical Shutter Up to 12 fps at 24.1 MP for up to 1000 Frames (Raw) / 1000 Frames (JPEG)
Interval Recording
Yes
Self-Timer
2/10-Second Delay
Still Image Capture
Image Sizes
3:2 Raw 24 MP (6000 x 4000) 9.3 MP (3744 x 2496) 16:9 JPEG 20.2 MP (6000 x 3368) 8.6 MP (3984 x 2240) 5 MP (2976 x 1680) 3.2 MP (2400 x 1344) 4:3 JPEG 21.3 MP (5328 x 4000) 8.9 MP (3552 x 2664) 5.3 MP (2656 x 1992) 3.4 MP (2112 x 1600) 3:2 JPEG 10.6 MP (3984 x 2656) 5.9 MP (2976 x 1984) 3.8 MP (2400 x 1600) 1:1 JPEG 16 MP (4000 x 4000) 7 MP (2656 x 2656) 3.9 MP (1984 x 1984) 2.5 MP (1600 x 1600)
Aspect Ratio
1:1, 3:2, 4:3, 16:9
Image File Format
HEIF, JPEG, Raw
Bit Depth
14-Bit
Video Capture
Internal Recording Modes
Raw 12-Bit 6000 x 3164 at 23.98/24.00/25/29.97/50/59.94 fps [720 to 2600 Mb/s] H.264/MP4 4:2:0 8-Bit DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100 fps UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps 1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps H.265/MP4 4:2:2 10-Bit DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100 fps [85 to 1880 Mb/s] UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [85 to 1880 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps [28 to 470 Mb/s]
External Recording Modes
4:2:2 10-Bit via HDMI DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps
Fast-/Slow-Motion Support
Slow-Motion Only
Gamma Curve
Canon Log 3
Recording Limit
No
IP Streaming
No
Built-In Microphone
Mono
Audio Recording
2-Channel AAC Audio 2-Channel LPCM Audio
Interface
Media/Memory Card Slot
Slot 1: CFexpress Type B Slot 2: SD/SDHC/SDXC (UHS-II)
Video I/O
1x Micro-HDMI (Unspecified Signal) Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body 1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body
Power I/O
1x USB-C Input
Other I/O
1x RJ45 1x Canon N3 Control 1x USB-C Data Output (Shared with Power Input)
Wireless
2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0 Control
